M3 16.8mm Threaded Shaft Stepper Motor For Robot
Voltage:DC 5-12V
Weight:About 14g
Product Description
Product Type: | CHS-GM12-15BY DC Stepping Motor |
Shaft length: | 16.8mm (batch customizable) |

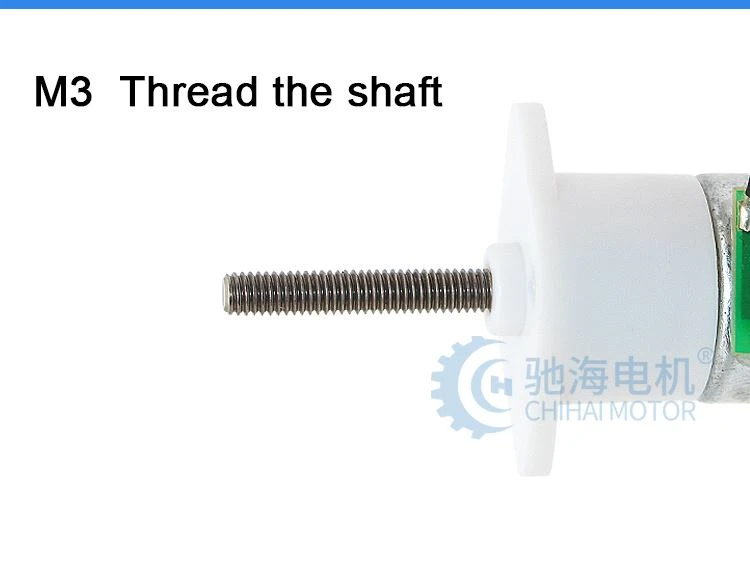

Shaft diameter: | M3 Thread the shaft (batch customizable) |
Voltage: | DC 5-12V |
Weight: | About 14g |
Step Angle: | 18 degree /298（0.06 degree ） |
phase resistance: | 30 Ω/Phase |
Application: | Smart selfie stick, smart camera holder, Intelligent robot camera Angle, intelligent micro robot, etc. |
Detailed Images
Input stepper motor parameters
Model Name MODEL:CHS-15BY-M3015 | |||
Rated voltage | 5 V DC (DrIVER IC:16219) | CURRENT PER PHASE | 160mA / PHASE |
COIL RESISTANCE | 30±7 percent ohm / PHASE | NO.OF PHASES | 2 PHASES |
STEP ANGLE | 18 degree / STEP | EXCITATION METHOD | 2 PHASES EXCITATION |
DRIVE MODE | BIPOLAR DRIVE | COIL INDUCTANCE | 9.5 mH / PHASE |
PULL-OUT TORQUE | MORE THAN | HOLDING TORQUE | MORE THAN |
4 gf-cm AT 500 pps | 16 gf-cm AT 0 pps | ||
MAX RESPONSE FREQUENCY | MORE THAN 1200 pps | MAX STARTING FREQUENCY | MORE THAN 900 pps |
INSULATION CLASS | CLASS E FOR COILS | INSULATION STRENGTH | 100 V AC FOR ONE SECOND |
INSULATION RESISTANCE | 50MΩ DC 500V | OPERATING TEMPERATURE | -0 - plus 55 degree |
Product Parameters
Model:CHS-GM12-15BY Stepper Motor | |
Voltage: DC 5.0V (Driver IC:L6219) | |
PHASE | 2 phase 4wire |
Step angle | 0.06 degree ± 7 percent |
Phase resistance | 30 Ω ± 7 percent |
Phase Inductance | 9.5 mH ± 20 percent |
Self aligning torque | 1300 gf.cm ( REF ) |
Holding torque | 1300 gf.cm ( Min ) |
Pull out torque | 1000 gf.cm ( Min ) |
Max starting frequency | 1000 HZ Min |
Max slewing frequency | 800 HZ Min |
Ratio | 1 : 298 |
